Code Documentation

XSLT 4.0 adds the xsl:note element, for documentation within a stylesheet. The XSLT/XPath extension supports notes written in a simple format, xdoc-md: Markdown text followed by tags such as @param and @return, in the style of Javadoc and xqDoc.

A note in this format, as the first child of an xsl:function, a named xsl:template or an xsl:item-type, is shown in hover help wherever the declaration is used - including from other stylesheet modules - and on the declaration's own name. For functions and templates, it's also shown in signature help. For a record type, declared with xsl:item-type, the note can also describe each of the record's fields.

A module note, as the first child of the xsl:stylesheet, describes the module and its global parameters and variables - and a global parameter or variable can have a note of its own, for more detail.

The XSLT 4.0 specification allows xsl:note anywhere, with any attributes and content, and leaves the format of the documentation open. The format="xdoc-md" attribute is the extension's convention for the notes it shows: XSLT processors ignore it, with the rest of the note.

These features are enabled when the stylesheet has version="4.0" - and for XSLT 3.0, see Notes in XSLT 3.0.

Writing a documentation note

Set the format attribute to xdoc-md. The text before the first tag is a description, in Markdown. Each tag starts a new line, and continues on the following lines up to the next tag:

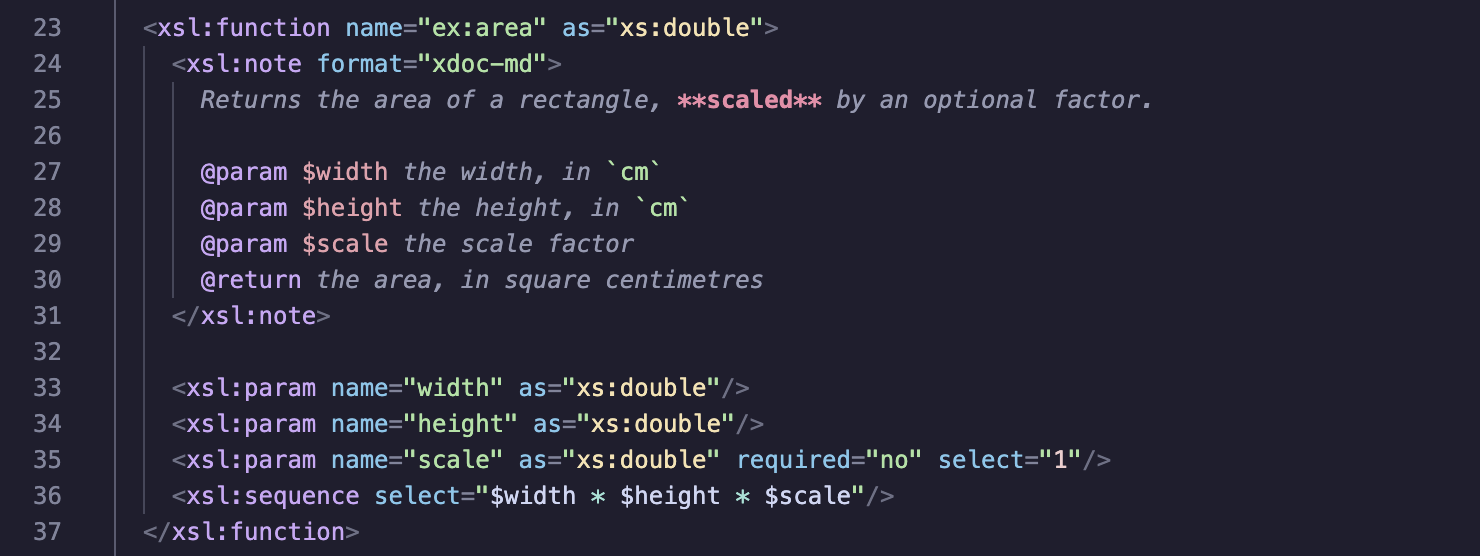

The xdoc-md tags within xsl:note are highlighted along with any markdown used

Tags

  • @param $name - a parameter of a function or template - or, in a module note, a global parameter
  • @return - the result of a function or template
  • @field name - a field of a record type, for an xsl:item-type
  • @variable $name - a global variable, in a module note
  • @see - a related function, template, item type, variable or URI - see References to other declarations
  • @since - the version it was added in
  • @deprecated - why it should no longer be used, and what to use instead
  • @error - an error a function or template may raise
  • @author and @version - for a module note

@field isn't an xqDoc tag: the extension adds it, in the same style, for documenting records. A field name that isn't an NCName is quoted, as in the record type - for example @field 'unit name' e.g. cm.

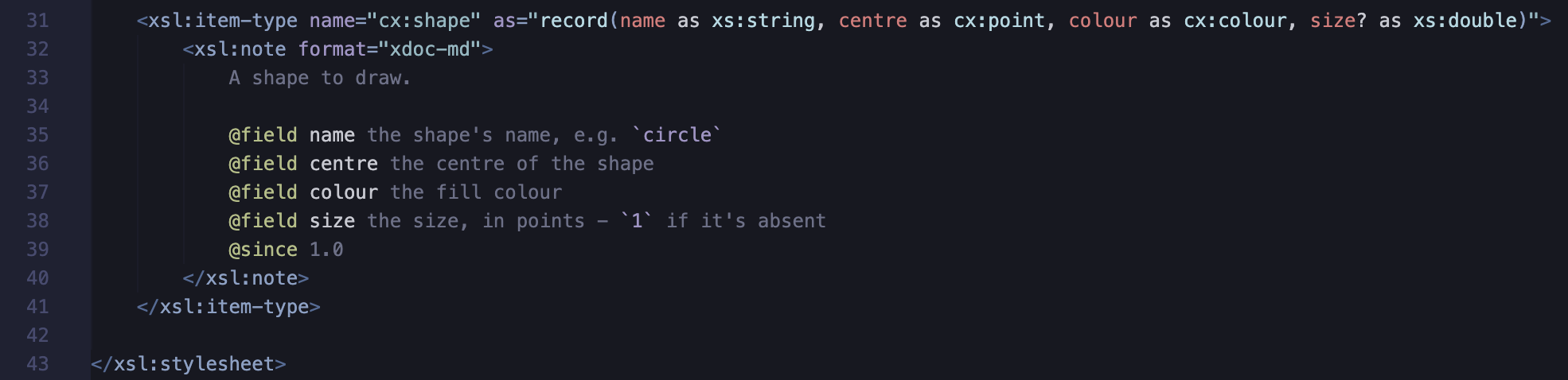

A note on an xsl:item-type, with an @field tag for each field of its record type.

Markdown

The description and tag text can use Markdown: **bold**, *italics*, `code`, [links](https://example.com) and # headings.

As the note is XML, the characters < and & must be escaped as normal XML, for example &lt;. Alternatively, put text containing markup in a CDATA section: its content is shown exactly as written.

Adding a note

With the cursor on the start tag of an xsl:function, xsl:template, xsl:item-type, the xsl:stylesheet, or a global xsl:param or xsl:variable, that has no xsl:note, choose Add documentation note from the refactorings (💡 or ⌘.). A note is inserted as the first child, with:

  • an @param for each parameter, and an @return for a function (or a template with an as attribute)
  • for an xsl:item-type with a record type, an @field for each field
  • for a module note, an @param or @variable for each global parameter or variable that has no note of its own

An empty element, e.g. <xsl:item-type .../>, gets an end tag for the note.

Press Tab to move between the description placeholders.

Notes can also be added with auto-completion, after <:

  • xsl:note inserts a note on one line. It's offered within any XSLT element, and within literal result elements - XSLT 4.0 allows xsl:note anywhere.
  • xsl:note xdoc-md inserts a documentation note. It's offered where one is used - within a function, named template, item type, global parameter or variable, or at the top level for the module note - and when there isn't one yet. There, it's listed first, and preselected.

Within the start tag of an xsl:note, format is offered as an attribute, and xdoc-md as its value.

Within a note, typing @ offers the tags that apply: @see, @since and @deprecated for every note, with @field for an xsl:item-type; @param, @return and @error for a function or template; and @param, @variable, @author and @version for a module note. The note of a global xsl:param or xsl:variable is offered only @see, @since and @deprecated. After @param, the parameter names without an @param yet are offered - and likewise after @field and @variable.

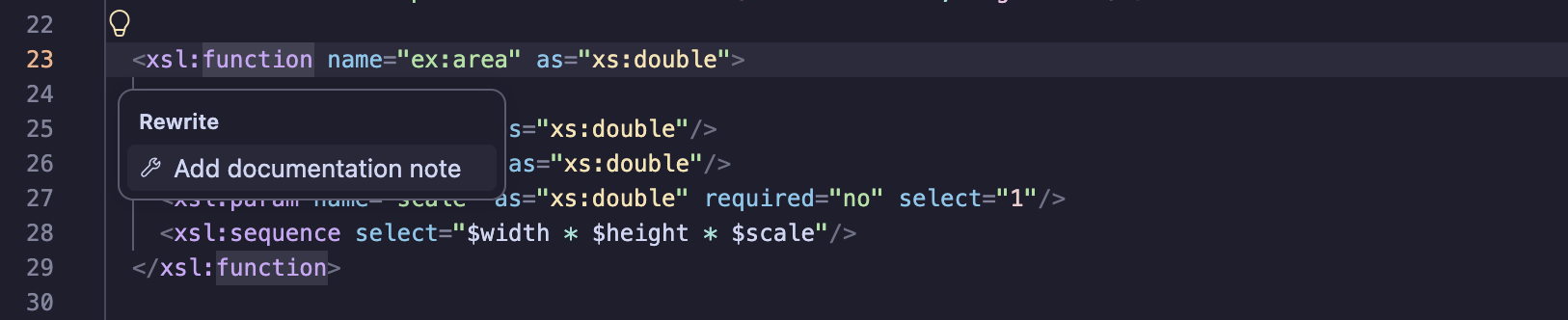

The code action 'Add documentation note' is offered on selecting a function element.

Where notes are shown

  • Hover help - on a call to the function, or on the name of an xsl:call-template, the note's description and tags are shown with the signature. On the name of an xsl:with-param, the parameter's @param text is shown.
  • Hover help on item types - on a named item type where it's used, e.g. in an as attribute or after instance of, the note is shown with the type's declaration.
  • Hover help on declarations - on the name of an xsl:function, named xsl:template or xsl:item-type, the note is shown just as for a use of it. On the name of an xsl:param of a function or template, the parameter's @param text is shown.
  • Record fields - the @field text is shown in hover help on a field, e.g. r in $c?r, and with the field suggestions of auto-completion: for a lookup, a child step on a JNode, a map constructor key and an xsl:map-entry. For an item type declared as another, e.g. as="cx:point", the other type's @field text is used.
  • Variable references - on a reference to a global parameter or variable, e.g. $scale, or the name of its declaration, its type and documentation are shown - see Module notes. On a reference to a parameter of a function or template, its @param text is shown.
  • Signature help - while typing the arguments of a function call, or the xsl:with-param children of an xsl:call-template, the parameter hints show the @param text for the current parameter.
  • Auto-completion - the xsl:with-param suggestions within an xsl:call-template show the @param text for each parameter.
  • Packages - on the name of an xsl:use-package, the package's module note is shown with the components the stylesheet can use - and a declaration in xsl:override without a note of its own has the note of the package component it overrides, see XSLT Packages.

Notes on functions, templates and item types in included and imported stylesheets, and in the packages a stylesheet uses, are shown too.

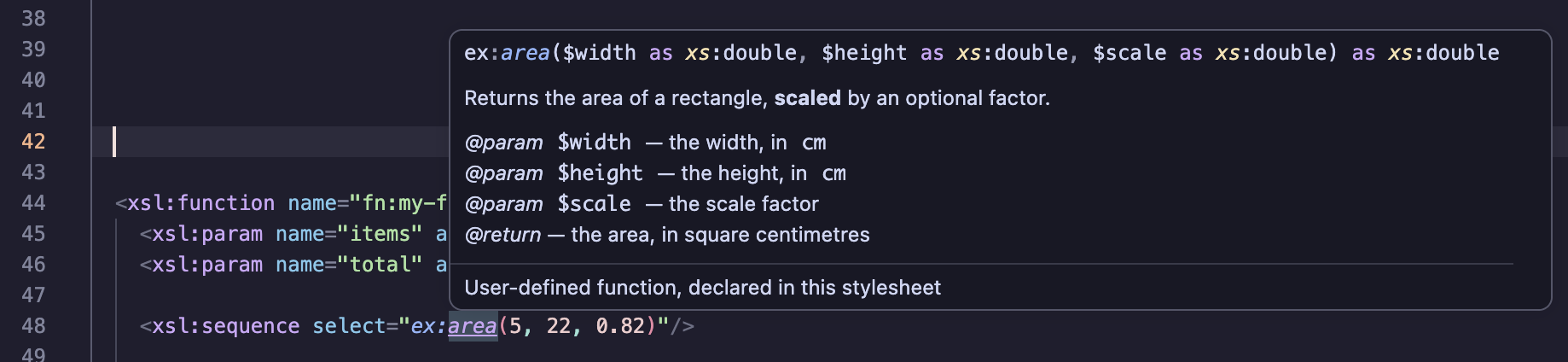

To see xdoc-md documentation on the function (or named template) hover over the referring code.

References to other declarations

A note can refer to a function, template, item type or variable declared elsewhere - after @see, or as a Markdown code span anywhere in the note - using the XPath syntax for it:

  • my:area#2 - the function with that arity
  • my:area() or my:area - a function of any arity - or for my:area, else a named item type or template
  • $scale - a parameter of the function or template the note documents, or else a global parameter or variable
  • template my:draw - a named template

For example, @see my:area#2, or Uses `$scale` and `template my:draw`. In a code span, a name without a prefix is only a reference as $name, name#2, name() or template name, as code spans are used for other text too.

  • Navigation - Go to Definition and hover help work on a reference just as on a use of the declaration, including declarations in imported and included modules.
  • Find references and rename - the references in notes are found, and renamed, with the declaration - e.g. renaming my:area changes @see my:area#2 too.
  • Auto-completion - after @see, and within a code span, the declarations are suggested, written so that they refer to them: parameters and variables, e.g. $scale, functions by arity, e.g. my:area#2, then item types and templates.

In the note of a declaration in xsl:override, a reference to the component it overrides is to the package's declaration - so @see shp:area#1 in the note of the overriding shp:area goes to the package's shp:area, not to itself. The declarations that the override quick fixes and refactoring add have a note with that @see.

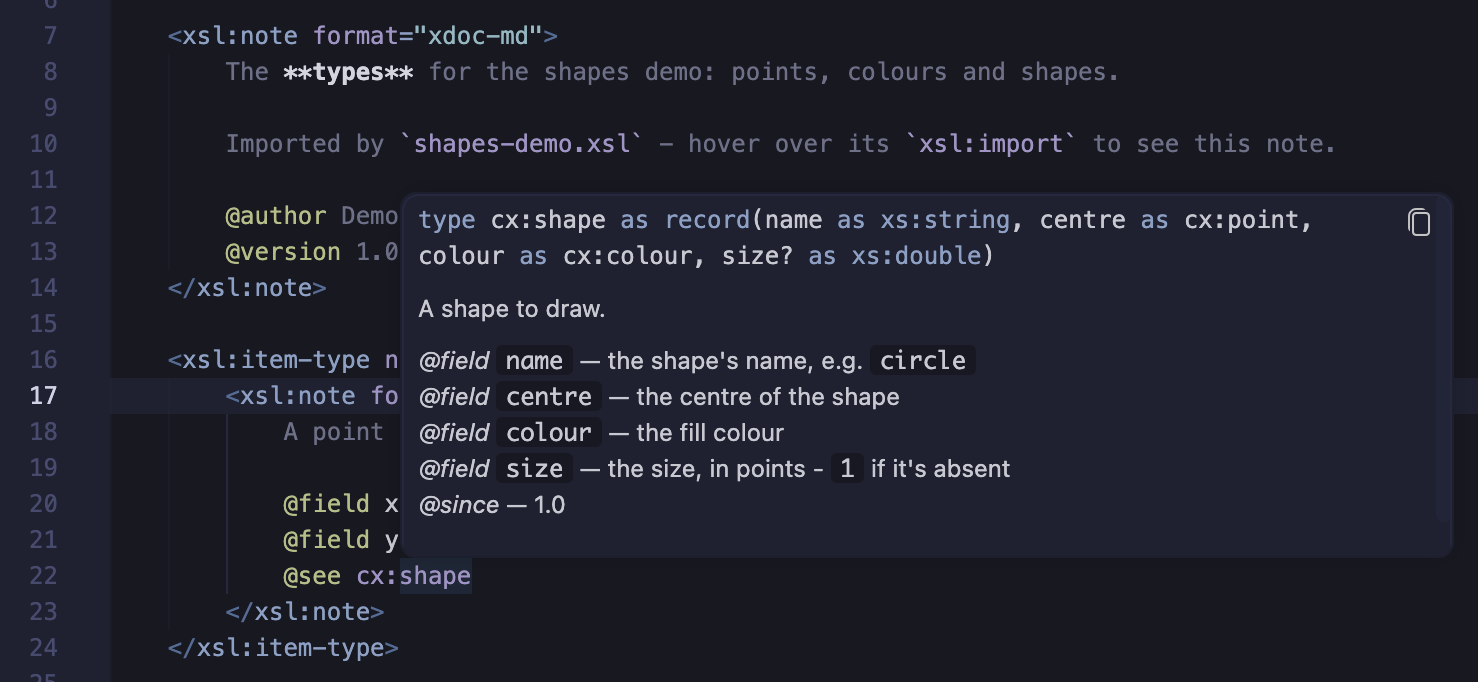

Hover on a reference in a note to review the referenced item's description.

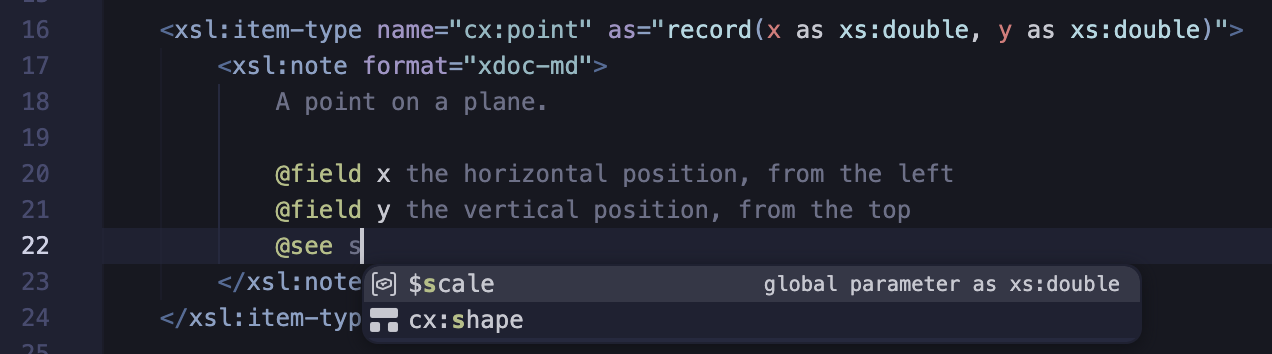

Auto-completion hints are triggered when adding a reference in a note.

Module notes

A documentation note as the first child of the xsl:stylesheet (or xsl:transform or xsl:package) describes the module. Its tags can describe the global parameters and variables briefly, so they don't need notes of their own:

<xsl:stylesheet ... version="4.0"> <xsl:note format="xdoc-md"> Draws shapes. @param $scale the scale factor @variable $origin the point all shapes start from @author Ann @version 1.2 </xsl:note> <xsl:param name="scale" as="xs:double" select="1"/> <xsl:param name="colour" as="cx:colour" select="'red'"> <xsl:note format="xdoc-md">The fill colour, used for **every** shape.</xsl:note> </xsl:param>

For more detail, a global xsl:param or xsl:variable can have a documentation note of its own, as its first child. It's shown in place of the module note's @param or @variable text - so a module note can give a brief summary, and the parameter's own note the details.

  • Hover help on variables - on a reference to a global parameter or variable, or the name of its declaration: its type, its documentation, and for an enumeration type, its values.
  • Hover help on imports - on the href of an xsl:import or xsl:include: the module's note, and its path - and on the name of an xsl:use-package, the note of the xsl:package, see XSLT Packages.
  • Preview - on the start tag of the module note: the note as it's shown for an import of the module.
  • Rename - renaming a global parameter or variable renames its @param or @variable tag too.

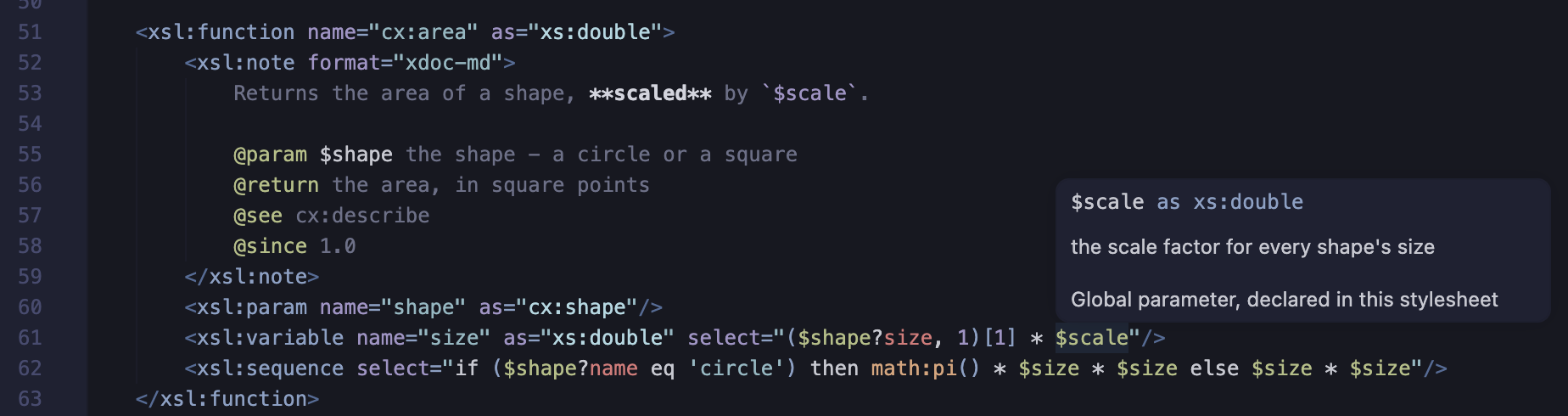

The hover on a reference to a global parameter, $scale, showing its @param text from the module note.

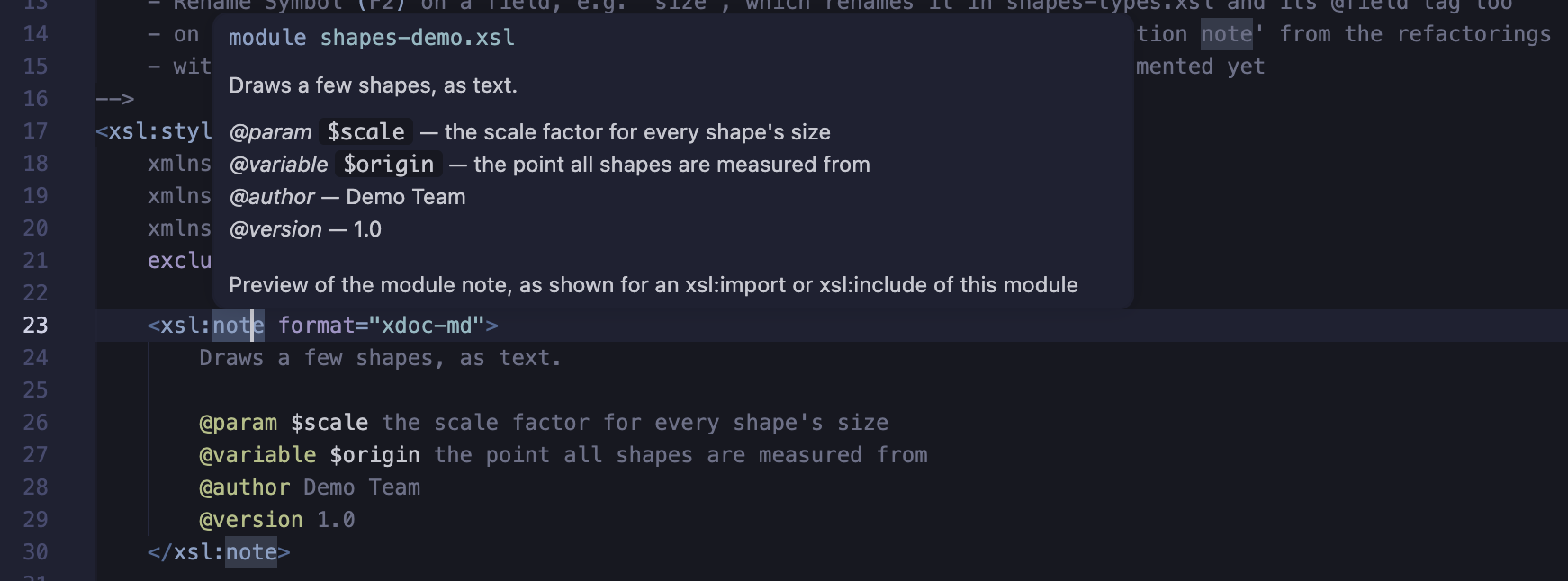

The hover on the start tag of a module note, previewing the note.

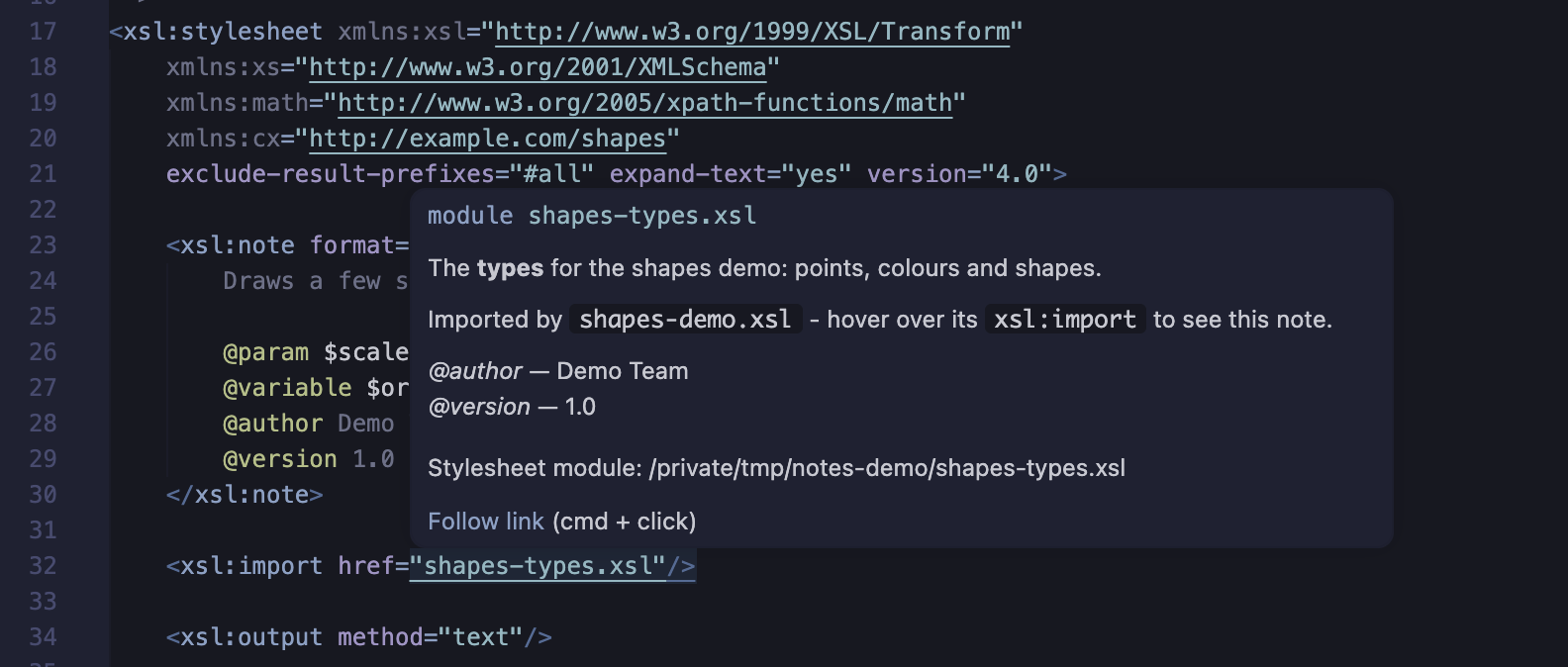

The hover on the href of an xsl:import, showing the imported module's note.

Notes in XSLT 3.0

Unless you're using a compatible Saxon version with syntax extensions enabled (see note below), an XSLT 3.0 processor reports XTSE0010 for xsl:note, as an unknown XSLT element - the workaround is just to exclude this with use-when="false()", which works with any processor. In a stylesheet with version="3.0":

  • an xsl:note without a use-when attribute is a warning, with the quick fix Exclude with use-when="false()"
  • the xsl:note completions and Add documentation note insert the note with use-when="false()"
  • documentation notes are shown, highlighted and checked, as in XSLT 4.0

Highlighting Details

The content of a note is highlighted as documentation: tags, parameter and field names, code, bold and italic text, headings and links each have their own semantic token type. The token types have fallbacks, so they're highlighted in most color themes. To change their colors, add rules for the token types xdocText, xdocTag, xdocParam, xdocCode, xdocBold, xdocItalic, xdocHeading, xdocLink and xdocCdata to the editor.semanticTokenColorCustomizations setting.

Notes as XML

The extension includes an Invisible XML grammar for its documentation notes, xdoc-md.ixml. With the XPath 4.0 invisible-xml() function, a stylesheet can use it to turn its notes into XML - for example, to generate documentation for a library of functions.

Tag Checks

The @param tags are checked against the xsl:param elements of the function or template, and the @field tags against the fields of the item type's record type:

  • an @param for a name that isn't a parameter, or an @field for a name that isn't a field, is a warning
  • a second @param for the same parameter, or @field for the same field, is a warning
  • when a note has @param tags, parameters without one are reported as information, with an Add missing @param quick fix - and likewise fields without an @field, with an Add missing @field quick fix
  • an @field in the note of a function or template, or of an item type that isn't a record type, is a warning
  • an @param, @return or @error in the note of an xsl:item-type is a warning
  • an @see reference that refers to no declaration, e.g. @see my:aera#2, is a warning - but not other text, e.g. a URL, or a built-in function or type, e.g. fn:sum#1

In a module note, the @param and @variable tags are checked against the global parameters and variables in the same way: when the note has @variable tags, global variables without one are reported as information, with an Add missing @variable quick fix - as for @param, with Add missing @param. A global parameter or variable with a note of its own isn't reported as missing from the module note. @return and @error in a module note, and @param, @variable, @return and @error in the note of a global parameter or variable, are warnings.
