An XML catalog maps the URIs used in a stylesheet to the files they're resolved to. With a catalog, a stylesheet can import a shared library by a fixed name, such as http://example.com/xslt/strings.xsl, wherever the library's files are kept - only the catalog changes when they move. Catalogs are an OASIS standard, XML Catalogs 1.1, and Saxon supports them with its -catalog option.

The XSLT/XPath extension uses a catalog to resolve the href of xsl:import and xsl:include - so the declarations of a module imported by its catalog name are known to the linter, auto-completion, hover help and go to definition - and passes the same catalog to Saxon when a stylesheet is run.

Catalogs are useful when:

• a team shares XSLT libraries across projects, and each project keeps its copy of a library in a different place
• stylesheets import libraries by http: URIs, and the files should be read locally - for speed, or to work offline
• libraries are reorganised, or a new version is tried, without editing the stylesheets that import them

To try it out, see the catalog demo.

Setting up a catalog

Set XSLT.resources.catalog to the path of the catalog file - relative to the workspace folder, or with ${workspaceFolder}. For a team, add it to the workspace settings, in the project's .vscode/settings.json:

"XSLT.resources.catalog": "catalog.xml"

The setting names one master catalog. It can hand lookups on to any number of other catalogs, with nextCatalog entries - for example, a catalog for each library.

When there's no setting, and the root of the workspace folder has a catalog.xml that's an XML catalog, you're asked whether to use it: Use adds the setting to the workspace settings, and Don't Ask Again is remembered for the workspace.

Changes to the setting, and to the catalog files, are picked up straight away.

Catalog files

A catalog is an XML file whose root element is catalog, in the namespace urn:oasis:names:tc:entity:xmlns:xml:catalog. Each entry maps a URI - the name used in an href - to the URI of a file. A relative path in a catalog is relative to the catalog file itself.

<catalog xmlns="urn:oasis:names:tc:entity:xmlns:xml:catalog"> <uri name="http://example.com/xslt/strings.xsl" uri="lib/strings/strings.xsl"/> </catalog>

With this catalog, <xsl:import href="http://example.com/xslt/strings.xsl"/> imports lib/strings/strings.xsl. The name needn't be a real web address: it's an identifier for the library.

The extension uses these entries:

• uri - maps one URI, its name, to the URI of a file, its uri
• rewriteURI - maps every URI that starts with its uriStartString, replacing that part with its rewritePrefix, and keeping the rest - e.g. a whole folder of libraries: <rewriteURI uriStartString="http://example.com/lib/" rewritePrefix="lib/"/> maps http://example.com/lib/strings/strings.xsl to lib/strings/strings.xsl
• uriSuffix - maps every URI that ends with its uriSuffix to the URI of a file
• nextCatalog - another catalog file, its catalog, to try when this catalog has no entry for a URI
• group - groups entries, e.g. to give them an xml:base - which can also be on the catalog element or an entry, to set the base URI that its relative paths are resolved against

In each catalog, an exact uri entry is used first, then the rewriteURI entry with the longest uriStartString that matches, then the uriSuffix entry with the longest uriSuffix - and only if none matches, the nextCatalog entries, in order. An href is looked up as it's written, and then, if it's relative, as the absolute URI it resolves to.

In the editor

For an xsl:import or xsl:include whose href the catalog resolves:

• the module's declarations are known, as for a module imported by its file path
• Cmd/Ctrl+click on the href opens the module's file

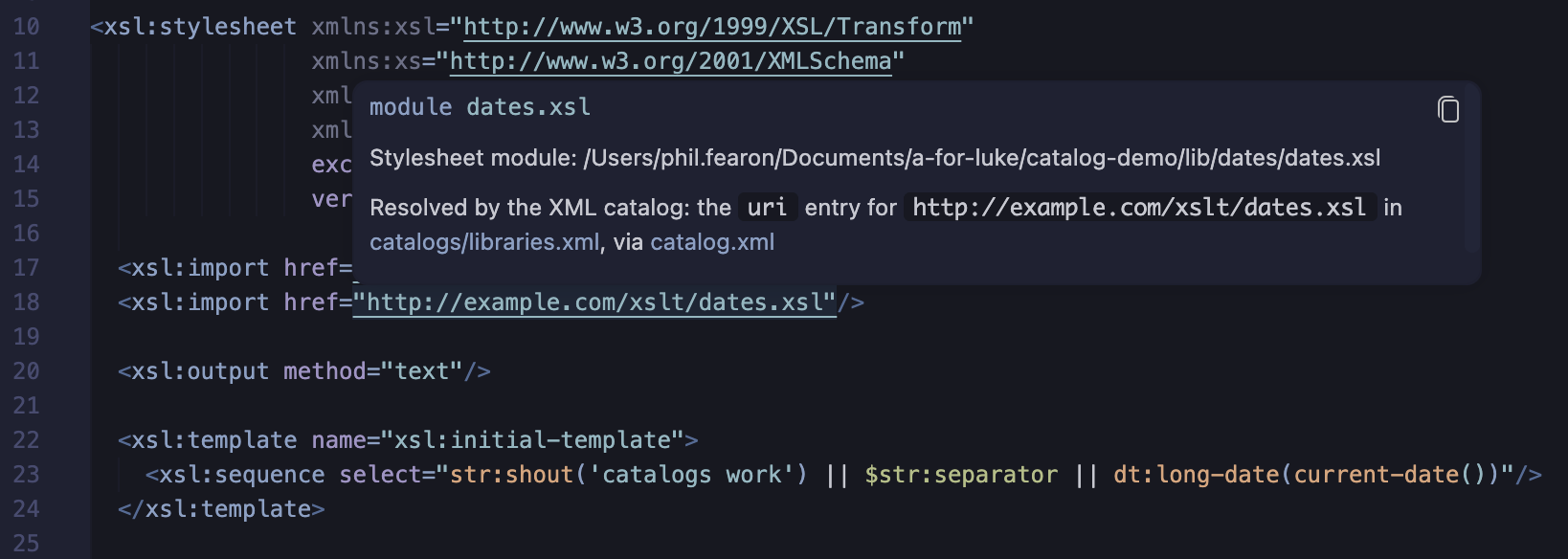

• hover help on the href shows how the catalog resolved it: the entry that matched, and the catalog files it was found through - e.g. Resolved by the XML catalog: the uri entry for http://example.com/xslt/strings.xsl in catalogs/libraries.xml, via catalog.xml

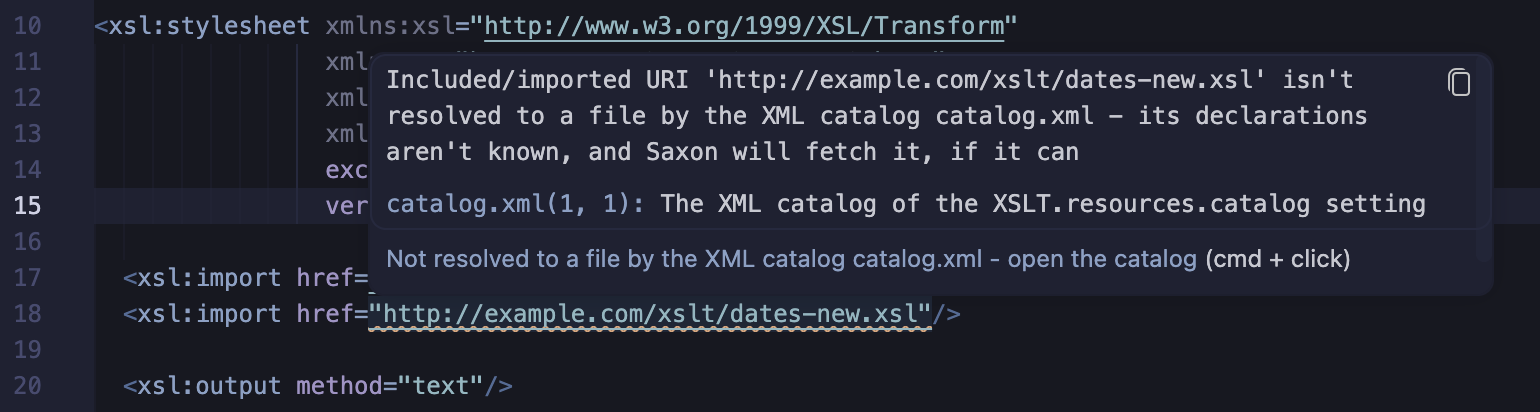

An href that's a URI the catalog doesn't resolve to a file is reported, naming the catalog:

• an http: or https: URI is a warning - its declarations aren't known, but Saxon will try to fetch it when the stylesheet is run
• another URI, e.g. urn:example:strings, is an error - Saxon can't resolve it either

In the Problems panel, the problem has a link to the catalog - and Cmd/Ctrl+click on the href opens the catalog, to add an entry for it. With no catalog, the problem suggests using one.

Catalog files in the editor

In a catalog file - one that the catalog of the setting reads, or any XML file with a catalog root element in the catalog namespace:

• the uri of each entry, and the catalog of each nextCatalog entry, is a document link, so you can Cmd/Ctrl+click from the master catalog, through the catalogs, to a library file

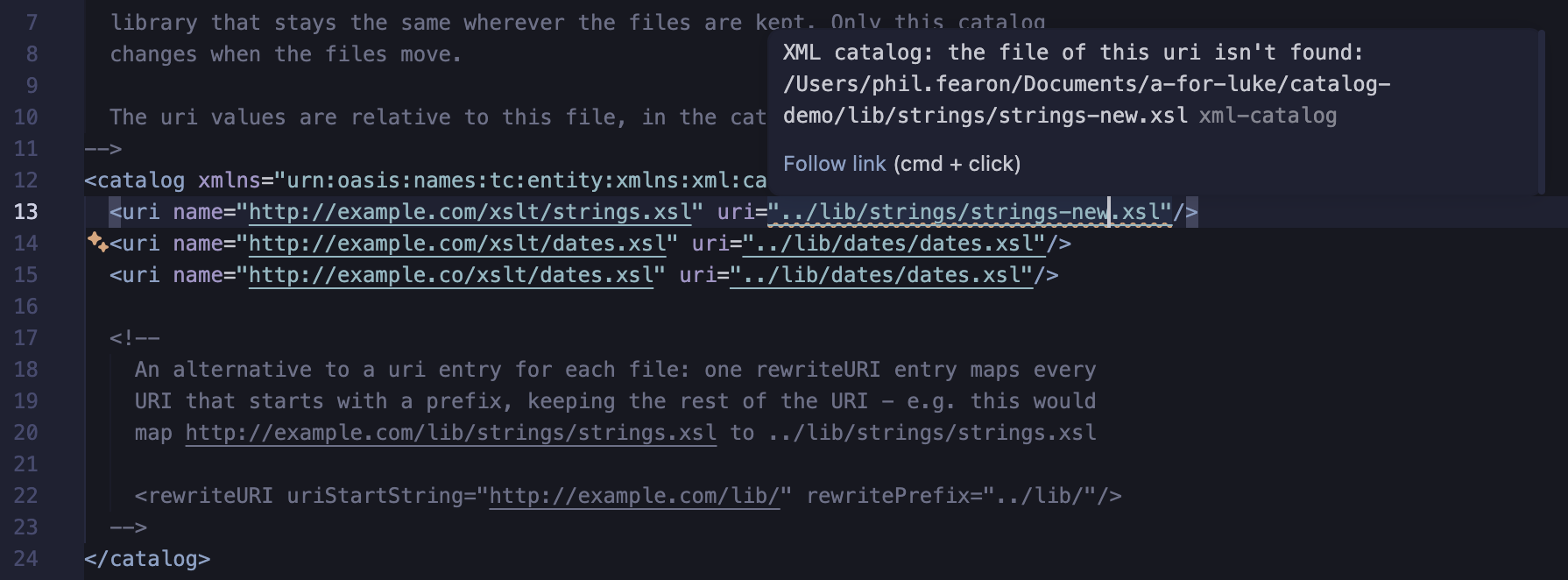

• an entry whose file - or, for a rewritePrefix, folder - isn't found has a warning, e.g. after a library has moved

Running stylesheets with the catalog

The XSLT tasks for SaxonJ (xslt) and SaxonC (xslt-c) - including those Quick Run creates - pass the catalog of the setting to Saxon, with the -catalog option, so the stylesheet is run with the same imports as it's edited with. A task's own catalogFilenames property is used instead, when it has one:

"catalogFilenames": "${workspaceFolder}/other-catalog.xml"

Limitations

• The setting names one master catalog - use nextCatalog entries for others.
• The editor uses the uri, rewriteURI, uriSuffix and nextCatalog entries - not system, public or delegate entries, which are for DTDs and other external entities. Saxon uses them all.
• Saxon-JS tasks aren't passed the catalog.

Catalog demo

The catalog-demo folder is a small, complete example: a master catalog that hands lookups on to a secondary catalog, which maps the URIs of two XSLT libraries, in different folders, to their files - and a top-level stylesheet that imports both libraries by those URIs. Clone the repository, or copy the files, to try it.

catalog-demo/ ├── catalog.xml master catalog: a nextCatalog entry for catalogs/libraries.xml ├── catalogs/ │ └── libraries.xml secondary catalog: a uri entry for each library ├── lib/ │ ├── strings/strings.xsl imported as http://example.com/xslt/strings.xsl │ └── dates/dates.xsl imported as http://example.com/xslt/dates.xsl ├── main.xsl imports both libraries by their catalog names └── .vscode/settings.json "XSLT.resources.catalog": "catalog.xml"

How http://example.com/xslt/strings.xsl is resolved:

1. catalog.xml has no entry for it, so its nextCatalog entry is tried: catalogs/libraries.xml
2. libraries.xml has a uri entry with that name, whose uri is ../lib/strings/strings.xsl - relative to libraries.xml
3. so the import is lib/strings/strings.xsl

Try it

1. Open the catalog-demo folder in VS Code (File > Open Folder...), so that its .vscode/settings.json applies
2. Open main.xsl: there are no problems, and hover help on str:shout shows the function's signature, from strings.xsl
3. Hover on an href, to see the entry that resolved it - and Cmd/Ctrl+click it, to open the library file
4. Open catalog.xml, and follow its links to catalogs/libraries.xml and the library files
5. Run main.xsl with Quick Run: the result is e.g. CATALOGS WORK! | Wednesday 30 September 2026

Then:

• Change an href to a URI that isn't in the catalog, e.g. http://example.com/xslt/missing.xsl, to see the warning - and Cmd/Ctrl+click it to open the catalog
• Move lib/dates to another folder: its entry in catalogs/libraries.xml has a warning. Update the entry's uri - main.xsl doesn't change
• Replace the two uri entries with the rewriteURI entry in the comment in libraries.xml, and change the hrefs in main.xsl to match
• Delete .vscode/settings.json and reopen the folder, to be offered catalog.xml

From the command line, the same catalog is passed to Saxon with -catalog:

java -cp saxon-he-13.0.jar net.sf.saxon.Transform -xsl:main.xsl -it -catalog:catalog.xml
